LOWEL PRIME LOCATION |
BiColor Model
Code: PL-01VBC BiColor,
V-lock battery plate
Code: PL-01ABC BiColor,
Gold Mt battery plate
Weight:10.5 lbs (4.76 kg)
US List Price:$23000.00 |
Daylight Model
Code: PL-01VDA Daylight color,
V-lock battery plate
Code: PL-01ADA Daylight color,
Gold Mt battery plate
Weight: 10.5 lbs (4.76 kg)
US List Price: $2150.00 |
|
|
Lowel's new Prime Location is our most rugged LED system yet. Sturdy all metal construction, and an impressive IP-65 weather rating*, not to mention powerful high CRI bicolor, daylight or tungsten color output.
Put a lot of light where you need it, with less concern about the elements.
| Features
Supplied with:
- Selected Battery Plate
- Gel Frame
- Safety Cable
- 5/8" Female Stand Fitting
- 10' unswitched AC Cable (PC1-810)
- Other AC cable connection options available
|

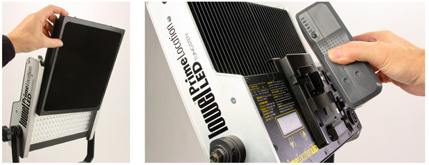

- DC - also powered by V-Lock, or Anton Bauer Gold Mount battery plates (user swap- pable)
- Quiet fanless operation
- Light Controls include: Barndoor Softening Set, and Honeycomb Grids
- Legendary Lowel quality
Accessories Include:
- Barndoor Softening Set
- 20 Degree Honeycomb Grid

|
Tungsten Model
Code: PL-01VTU Tungsten color,
V-lock battery plate
Code: PL-01ATU Tungsten color,
Gold Mt battery plate
Weight: 10.5 lbs (4.76 kg)
US List Price: $2150.00 |
*IP rating explained
(IP = Ingress Protection)
IP-65 rated items are protected against dust or larger sized objects entering the fixture. Also protected against powerful water jets from any direction. |
|
| Prime Location LED Specs & Tech. Data |
|
Each fixture has installed LEDs totaling 5800-6000 lumens
BiColor Model
Color Temperature: Variable-
3000°K - 6000°K
Code: PL-01VBC BiColor color,
V-lock battery plate
Code: PL-01ABC BiColor color,
Gold Mt battery plate
Weight: 10.5 lbs (4.76 kg)
Tungsten Model
Color Temperature:3300°K
Color Rendering Index:93+
Code: PL-01VTU Tungsten color,
V-lock battery plate
Code: PL-01ATU Tungsten color,
Gold Mt battery plate
Weight:10.5 lbs (4.76 kg)
|
Daylight Model
Color Temperature: 5600°K
Color Rendering Index: 93+
Code: PL-01VDA Daylight color,
V-lock battery plate
Code: PL-01ADA Daylight color,
Gold Mt battery plate
Weight: 10.5 lbs (4.76 kg)
|

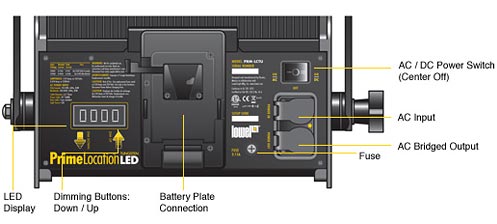

Daylight and Tungsten Model Controls
 |

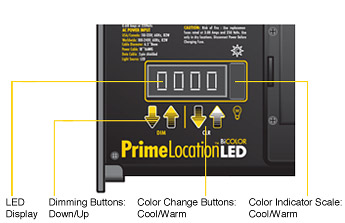

BiColor Model Controls
 |
| |
|
Fuses & Power Consumption
Lowel Prime Location LED's auto-set from 90-240 VAC.
Fixture consumes 82 Watts and has a Power Factor of .97
Note - Most electrical equipment briefly consumes a higher amount of electrical current during startup (ignition).
Consult the below chart to confirm that your electrical wiring is sufficient for the fixtures used. All fuses must be rated at 250VAC.
|
110 Volt |
240 Volt |
Model
|
Fuse
|
ALL |
3 A / 250 V |
|
Nominal
Current |
Peak
Ignition
Current |
| 0.714 A |
0.97 A |
|
Nominal
Current |
Peak
Ignition
Current |
| 0.403 A |
0.61 A |
|
|
Lowel Prime Location LED Output Performance
|
Each fixture has installed LEDs totalling 5800-6000 lumens
BiColor Color Model:3000k - 6000k, CRI 90+
|
Daylight Color Model:
5600k, CRI 93+
|
Tungsten Color Model:
3300k, CRI 93
|
|
